-10°C Water Screw Chiller Unit

Different Parameters, Different Price.
Our staff will give you the most suitable quote.

Introduction

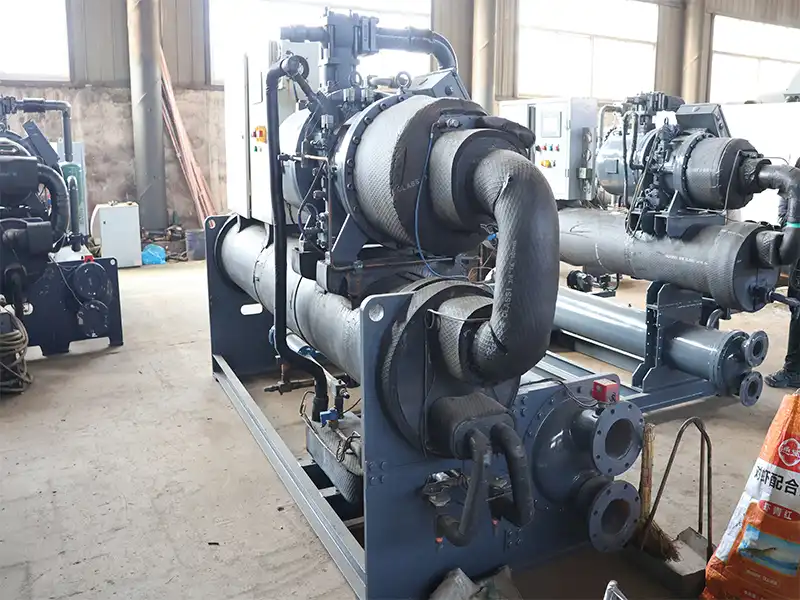

Jiangsu Borosheng BRS-200SK10 screw-type water-cooling unit, with temperature control ranging from -10℃ to 0℃, equipped with imported compressors and fluorine-resistant motors, capable of 0%-100% stepless energy adjustment. It is suitable for industrial temperature control in fields such as chemical and food industries. It can also be replaced with environmentally friendly refrigerants and is easy to operate and maintain.

Specification

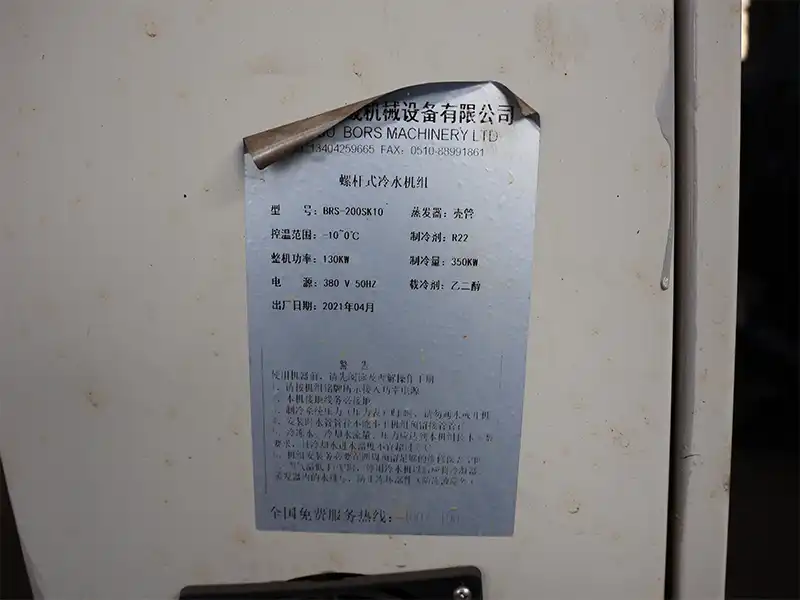

Item	Details
Manufacturer	Jiangsu Bors Machinery Ltd.
Equipment Name	Screw Chiller Unit
Model	BRS-200SK10
Evaporator Type	Shell and Tube
Temperature Control Range	-10°C ~ 0°C
Refrigerant	R22
Total Power	130kW
Cooling Capacity	350kW
Power Supply	380V 50Hz

Imported brand semi-hermetic 5:6 non-symmetric screw compressor, with a trouble-free operation time of 100,000 hours.
4-stage to 8-stage energy regulation or 0% to 100% stepless automatic regulation.
High-efficiency fluorine-resistant motor imported from France.
High-performance plate oil cooler.
Equipped with a PLC programmable controller, LCD touch screen, and bilingual (Chinese and English) human-machine interface.
Ultra-wide adjustable range of chilled water temperature, meeting the industrial usage requirements throughout the year.

Condenser

Item	Information
Brand	HANBELL (Hanbell Precision Machinery)
Model	RC-2-410B-H
Serial Number	C4M41A3785
Production Date	October 2014
Displacement	407 m³/h
Rated Voltage	Main Circuit: 380V/50Hz, Auxiliary Circuit: 220V/50Hz
Maximum Working Pressure	2.8 MPa
Starting Current	875 A
Maximum Operating Current	268 A
Refrigeration Oil Model	HBR-B03 (15L)
Refrigerant	R22
Compressor Weight	740 kg
Rotation Speed	2950 RPM
Refrigeration Oil	HBR-B03
Compressor Weight	740 kg
