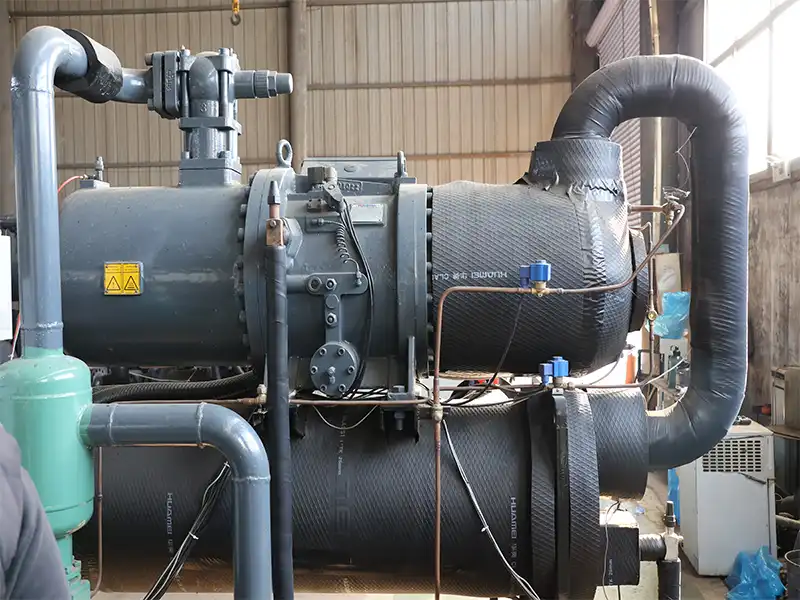

-5℃ Screw industrial chiller
Different Parameters, Different Price.
Our staff will give you the most suitable quote.
- Year：2024 .10
- Refrigeration Temperature: -5℃
- Refrigeration capacity: 510KW
- Refrigerating fluid: R22
Introduction
Specification

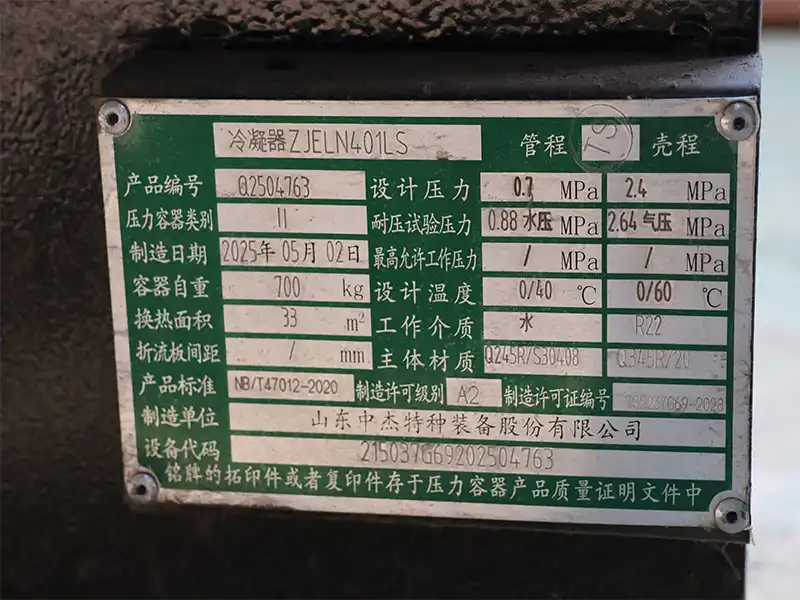

Item | Content |
Equipment Name | Condenser |
Model | ZJELN401LS |
Product Number | Q2504763 |
Pressure Vessel Category | Class Ⅱ |
Manufacturing Date | May 02, 2025 |
Vessel Net Weight | 700 Kg |
Heat Exchange Area | 33 ㎡ |
Baffle Spacing | / |
Product Standard | NB/T47012-2020 |
Manufacturing Unit | Shandong Zhongjie Special Equipment Co., Ltd. |
Equipment Code | 215037G69202504763 |
Tube Side Parameters |
|
Design Pressure | 0.7 MPa |
Pressure Test Pressure | 0.88 MPa (Hydraulic) |
Maximum Allowable Working Pressure | / MPa |
Design Temperature | 0/40 °C |
Working Medium | Water |
Main Material | Q245R/S30408 |
Shell Side Parameters |
|
Design Pressure | 2.4 MPa |
Pressure Test Pressure | 2.64 MPa (Pneumatic) |
Maximum Allowable Working Pressure | / MPa |
Compressor Specification

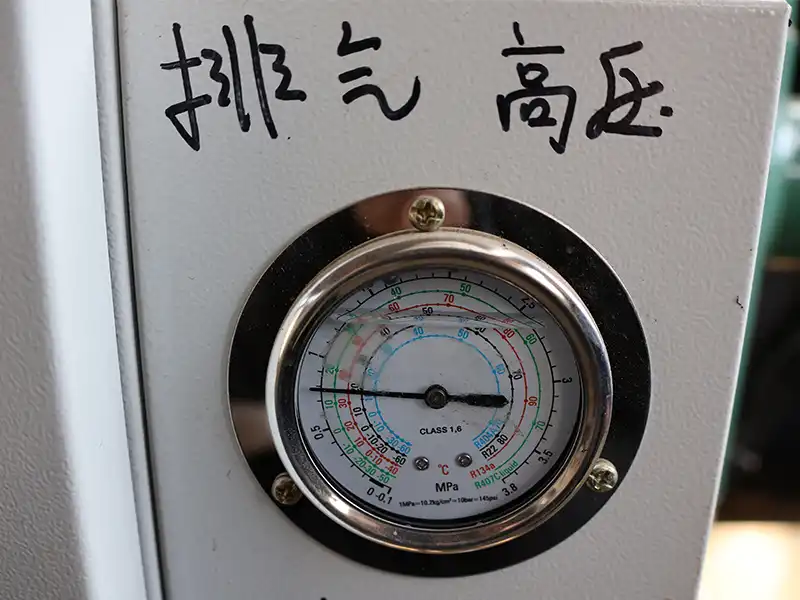

This is the pressure gauge display of the industrial chiller. All industrial chiller units we supply are shipped with pressure maintained.
Detail Display

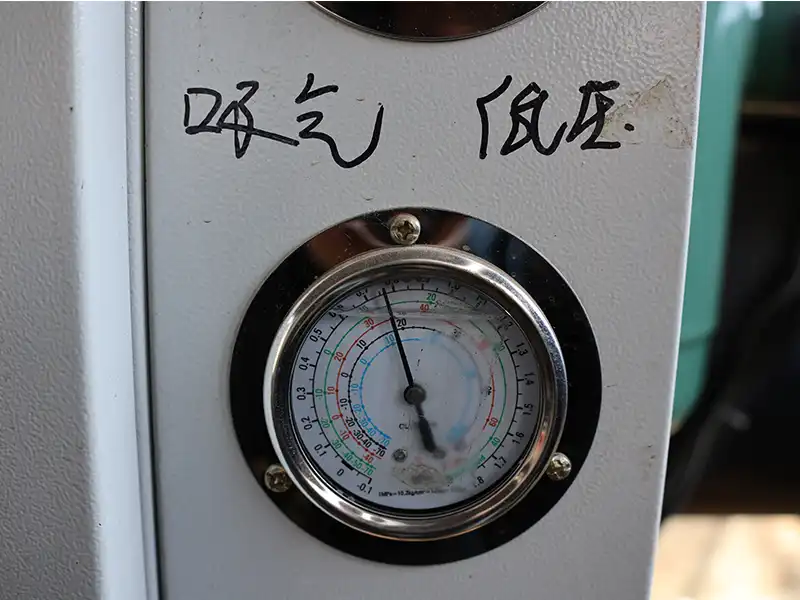

This is the pressure gauge display of the industrial chiller. All industrial chiller units we supply are shipped with pressure maintained.
