Introduction

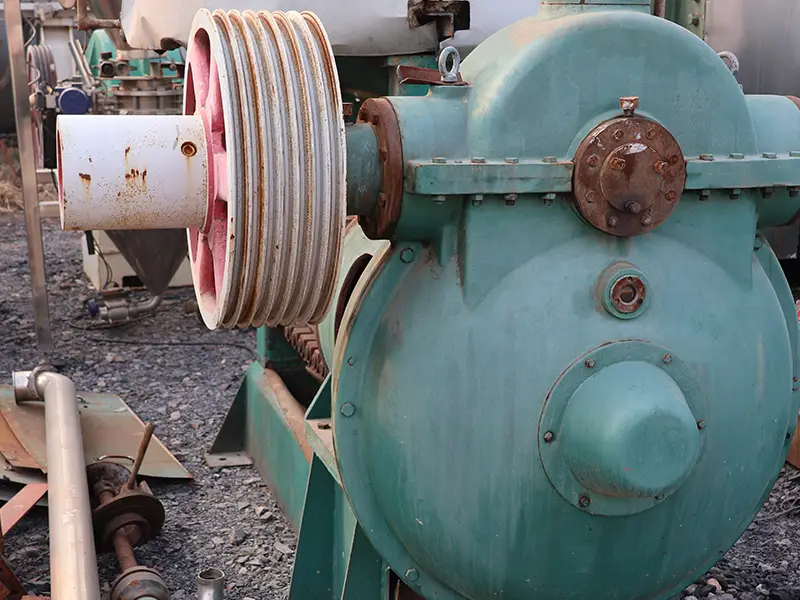

This is a continuous pre-extraction – extraction equipment for grain and oil processing plants. It is mainly used for pre-extraction processing of oil-containing oilseeds such as rapeseed, peanut, and cottonseed. It presses the steamed and fried seed embryos into low-residue cakes (which are convenient for subsequent extraction and oil production), and can also be used alone for direct pressing in small-scale production lines. It is one of the core equipment in the plant oil processing process.
Its features include large processing capacity, low residual oil rate, and the extracted oil cake has a loose structure, which is suitable for subsequent extraction processes. At the same time, the operation and maintenance are relatively simple, making it a commonly used equipment for small and medium-sized vegetable oil plants.

Parameter Item	Specific Value
Model	ZY24A
Applicable Materials	Rapeseed, peanut, cottonseed, and other oilseeds
Daily Processing Capacity	40-50 tons/day (taking rapeseed as an example)
Residual Oil Rate in Dry Cake	14%-18%
Press Shaft Rotational Speed	15 r/min
Equipped Power	30 kW (main motor) + auxiliary motor
Overall Dimensions	2900×1850×3640 mm
Net Weight of Complete Machine	Approx. 5500 kg

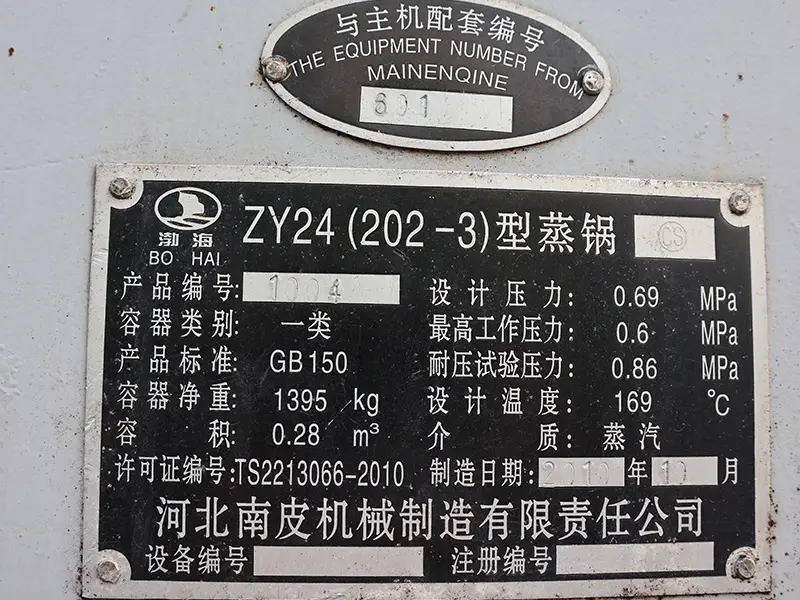

Item		Specification
Model		ZY24 (202-3) Type Steamer
Brand		Bohai (BO HAI)
Product Serial No.		1004
Pressure Vessel Category		Class I
Product Standard		GB 150
Vessel Net Weight		1395 kg
Vessel Volume		0.28 m³
Manufacturing License No.		TS2213066-2010
Design Pressure		0.69 MPa
Maximum Working Pressure		0.6 MPa
Hydrostatic Test Pressure		0.86 MPa
Design Temperature		169 °C
Medium		Steam
Date of Manufacture		October 2010
Manufacturer		Hebei Nanpi Machinery Manufacturing Co., Ltd.

This equipment is a small-scale oil extraction device that integrates “steaming, frying and extraction”. It is suitable for the following scenarios:
1. Small grain and oil processing workshopsDemand: A single production line to complete the processing from raw materials to crude oil, reducing equipment footprint and connection costs;Applicable materials: Rapeseed, peanuts, sesame seeds, etc. (daily processing capacity usually ranges from 5 to 20 tons).
2. Rural / Township oil extraction pointsDemand: Simple operation, high equipment integration, can quickly provide “processing on incoming materials” services for farmers;Advantages: Eliminates multiple equipment debugging steps, suitable for non-professional operators to quickly master.
3. Small and medium-sized food processing factories as a companionDemand: Self-made special oils (such as special nut oil, small variety oil extraction), no need for large-scale production lines;Applicable: Small batch, multi-variety oil extraction, balancing flexibility and processing efficiency.
4. Oil extraction equipment trial production / display scenariosDemand: As a demonstration device for a small production line, to showcase the complete process “from raw materials to oil”;Advantages: Integrated structure facilitates rapid setup of demonstration lines at exhibitions and promotion events.
