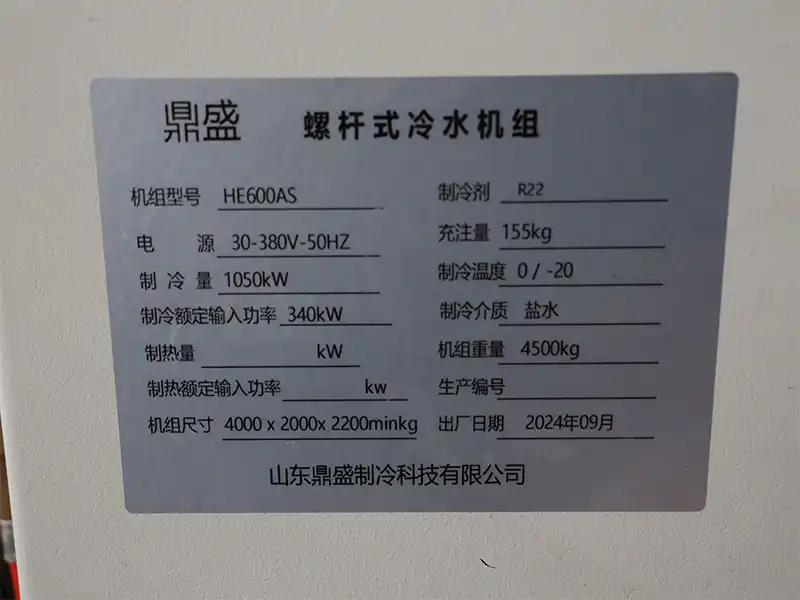

0/-20℃ Screw industrial chillerScrew industrial chiller nameplate

Different Parameters, Different Price.
Our staff will give you the most suitable quote.

Introduction

Shandong Minghua Refrigeration Technology Co., Ltd. is located in Liangshan County, Jining City, Shandong Province. The company mainly produces industrial refrigerators, industrial water chillers, low-temperature brine refrigerators, screw refrigerators, large-scale ice-making machines, chemical refrigeration stations, as well as chemical refrigeration units, and provides services such as refrigerators’ maintenance and repair.

Specification

Item	Content
Equipment Name	Screw Chiller Unit
Brand	Dingsheng
Unit Model	HE600AS
Power Supply	30-380V-50HZ
Refrigerating Capacity	1050kW
Rated Input Power for Refrigeration	340kW
Heating Capacity	No Data
Rated Input Power for Heating	No Data
Unit Dimensions	4000 × 2000 × 2200mm
Refrigerant	R22
Charge Amount	155kg
Refrigeration Temperature	0 / -20℃

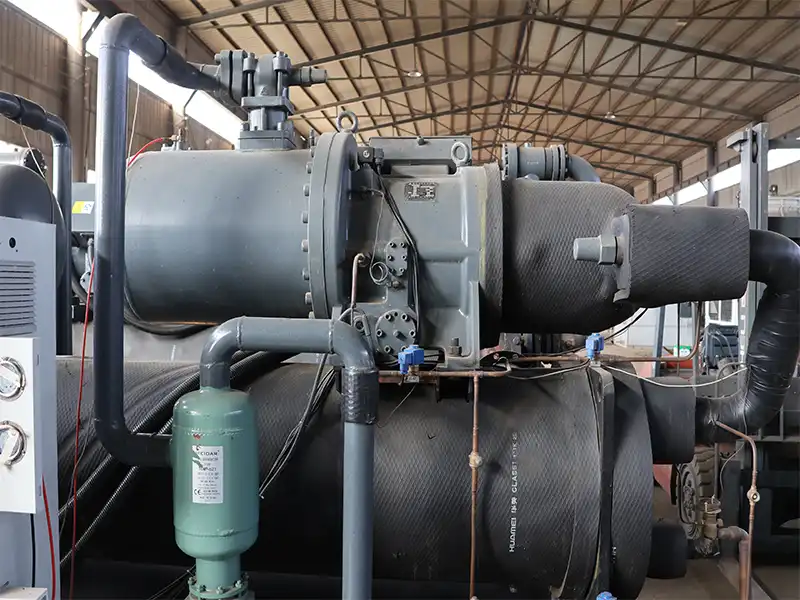

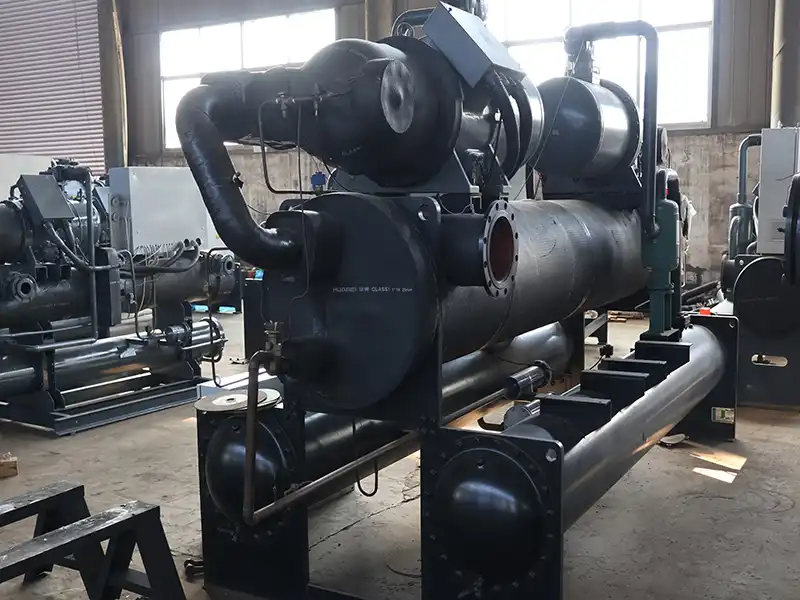

Screw Refrigeration Compressor Specification

Item	Content
Equipment Name	Screw Refrigeration Compressor
Brand	Fusheng Industrial
Model	SRG-600BH
Refrigerant	R22
Locked Rotor Current (LRA)	1950 A
Rated Current (RLA)	305 A
Compressor Weight	960 kg
Theoretical Displacement	575 m³/hr
Refrigeration Oil Model	100#
Refrigeration Oil Charge	19 L
Power Supply	380 V / 50 Hz
Rotation Speed	2950 r/min
Maximum Working Pressure	2.8 MPa

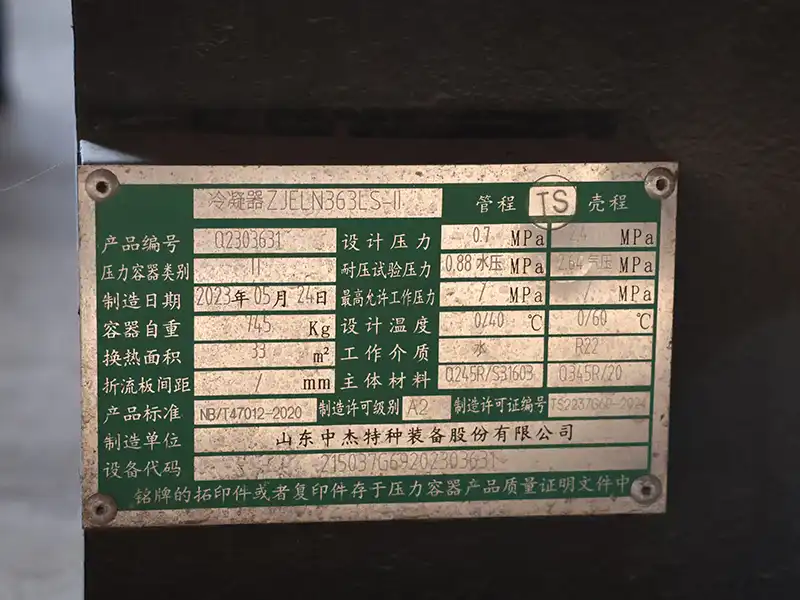

Item	Content
Equipment Name	Condenser
Model	ZJELN363LS-Ⅱ
Product Number	Q2303631
Pressure Vessel Category	Class Ⅱ
Manufacturing Date	May 24, 2023
Vessel Net Weight	145 Kg
Heat Exchange Area	33 ㎡
Baffle Spacing	/
Product Standard	NB/T47012-2020
Manufacturing Unit	Shandong Zhongjie Special Equipment Co., Ltd.
Equipment Code	215037G69202303631
Tube Side Parameters
Design Pressure	0.7 MPa
Pressure Test Pressure	0.88 MPa (Hydraulic)
Maximum Allowable Working Pressure	/ MPa
Design Temperature	0/40 °C
Working Medium	Water
Main Material	Q245R/S31603
Shell Side Parameters
Design Pressure	2.4 MPa
