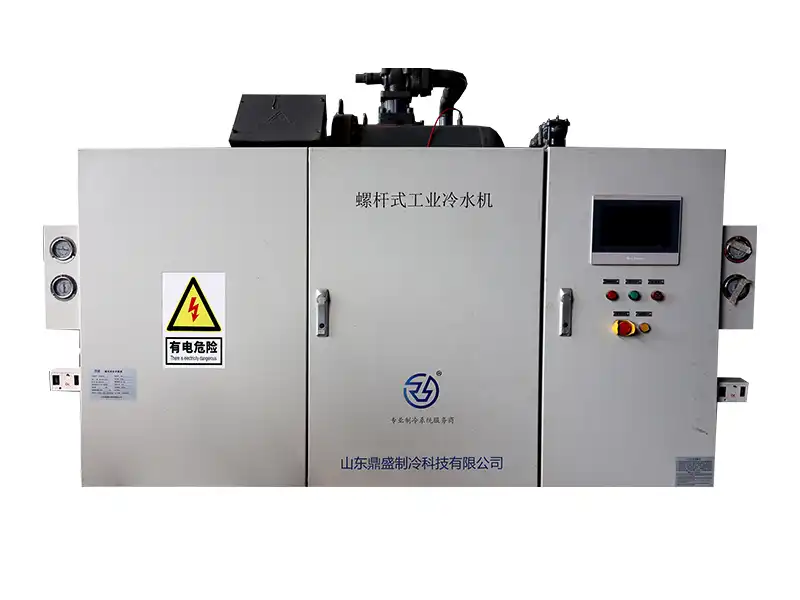

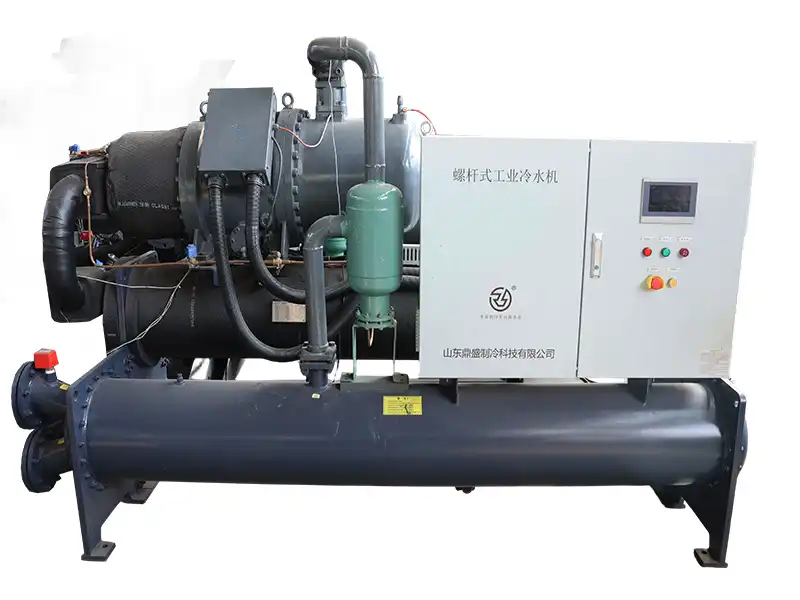

Screw industrial chiller
Different Parameters, Different Price.
Our staff will give you the most suitable quote.
- Year: 2023
- Bowl speed: 2950 RPM
- weight: 510 Kg
- Refrigerating fluid: R22
Introduction
Efficient rotor
HANBELL’s 5:6 efficient rotor profile
Long-life bearings
The selection of long-life bearings can provide a more stable operation condition and a longer operating time

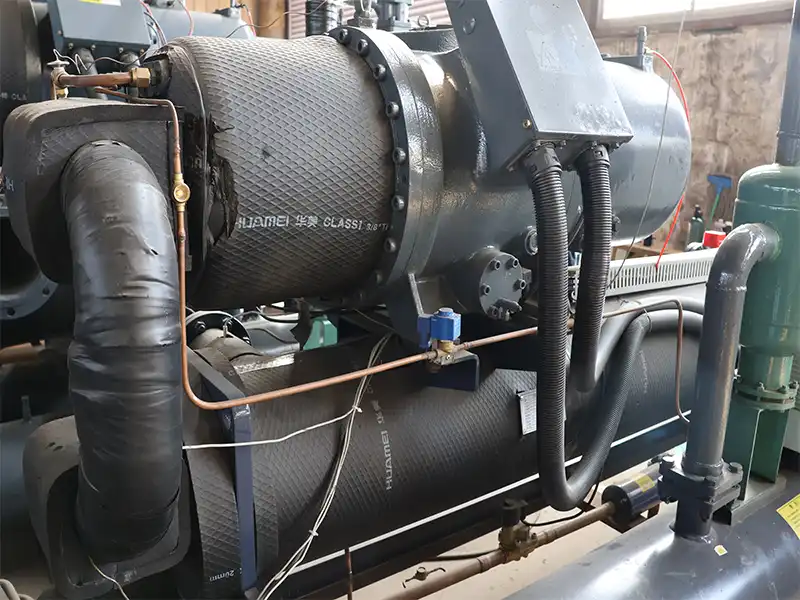

High-efficiency motor
The compressor uses low-loss silicon steel sheet cores, motor cooling channels, and refrigerant diversion design. These conditions ensure that the motor
has high efficiency and guarantees that the motor can operate stably and for a longer period of time under harsh conditions.
Back-end module protection
The configured INT69HBY Diagnose. The INT69HBY Diagnose adds protection functions such as reverse phase and phase loss, and has the function of adding new fault records, which can provide more comprehensive protection for the compressor.
Multi-machine parallel technology
According to the requirements, you can choose to use a single machine or a multi-machine parallel method, providing a wider range of choices.
Specification

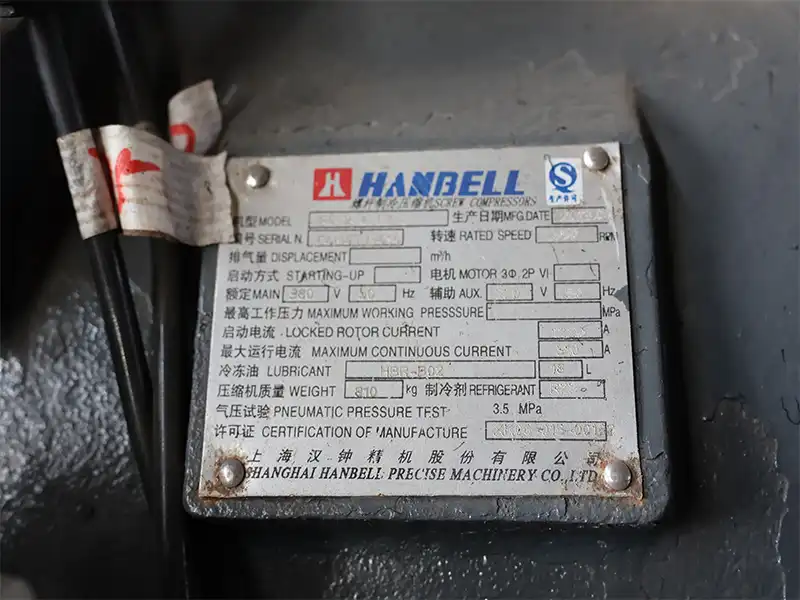

Item | Details |
Brand | HANBELL |
Equipment Name | Screw Refrigeration Compressor |
Model | RC-2-470B-Z |
Date of Production | March 2020 |
Serial Number | CAMA235404 |
Rotational Speed | 2950 RPM |
Rated Voltage (Main) | 380 V |
Rated Frequency (Main) | 50 Hz |
Auxiliary Voltage | 220 V |
Auxiliary Frequency | 50 Hz |
Starting Current | 1220 A |
Maximum Operating Current | 310 A |
Refrigeration Oil Model | HBR-B02 |
Refrigeration Oil Capacity | 18 L |
Compressor Weight | 510 Kg |
Refrigerant | R22 |
Pneumatic Test Pressure | 3.5 MPa |
Applications
Multi-type and large discharge volume
RC2 series compressors have increased from 14 models of RC series to more than 40 models. On the basis of the original high discharge volume models, 4 models with maximum discharge volume of 1527 m3/hr (50Hz) have been developed.
High-efficient motor
Compared with the RC series compressor, the motor of RC2 series compressor has higher efficiency, which can ensure that the compressor operate effectively. In addition, Hanbell supply two type (A or B) motor for choice to meet different working conditions.
To ensure RC2 compressor operate stably and high-efficiently in harsh conditions for a long time, whole series motor is developed with low-loss silicon steel core, motor cooling channel, refrigerant diversion design.
Application of refrigerant
Besides R22, RC2 compressor is also suitable for other refrigerant such as R134a, R407C, R404A, R507 etc.
New protection module
RC2 compressor is developed with new protection module INT69HBY Diagnose. Based on original protection module INT69, INT69HBY Diagnose is updated with protection for anti-phase and phase-loss, new fault record function; which can protect the compressor more comprehensively.
New high voltage model
Newly developed model RC2-1270HV/1530HV can meet the special requirement of voltage such as 6KV/10KV; more information about high voltage model, please contact with Hanbell directly.
