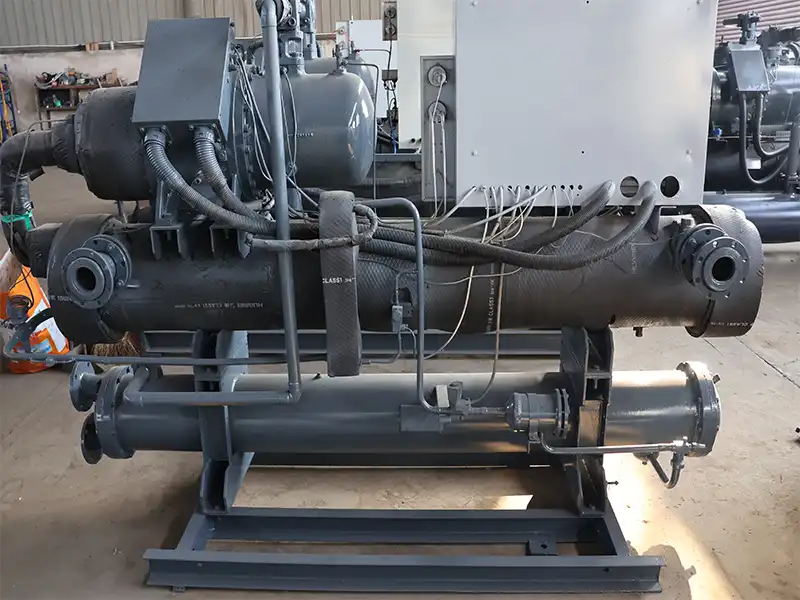

Single screw industrial chiller unit

Different Parameters, Different Price.
Our staff will give you the most suitable quote.

Introduction

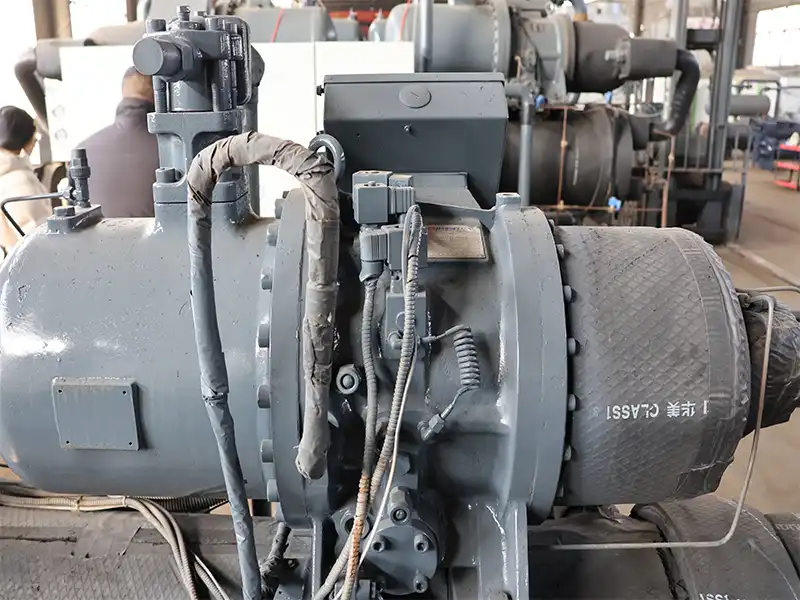

This is a small industrial screw-type refrigeration compressor, suitable for small and medium-sized water chillers or other refrigeration systems. Produced by Shanghai Hanzhong Precision Machinery Co., Ltd., this company is a leading enterprise in screw compressors in China, with highly stable products.

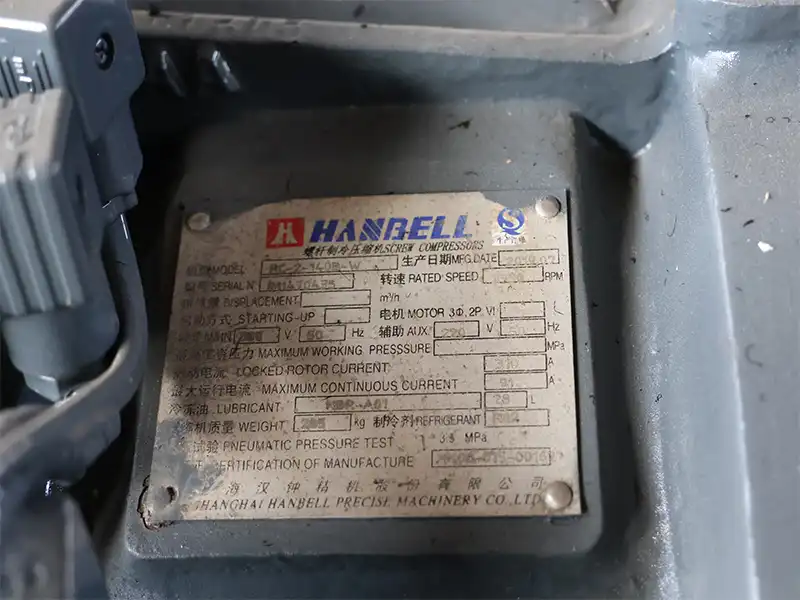

Specification

Parameter Item	Value
Model	RC-2-140B-W
Manufacturing Date	2018.02
Serial No.	M1A70A35
Rated Speed	2950 RPM
Displacement	/ m³/h
Starting-Up	/
Motor	3φ/2P /
Main Power Supply	380V 50Hz
Auxiliary Power Supply	220V 50Hz
Maximum Working Pressure	/ MPa
Locked Rotor Current	310 A
Maximum Continuous Current	91 A
Lubricant	HBR-A01, 28 L
Compressor Weight	295 kg
Refrigerant	R22
Pneumatic Pressure Test	3.5 MPa
Certification of Manufacture	TS2310-015-0016
Manufacturing Unit	Shanghai Hanbell Precision Machinery Co., Ltd.

Product Features

High-efficient motor

Compared with the RC series compressor, the motor of RC2 series compressor has higher efficiency, which can ensure that the compressor operate effectively. In addition, Hanbell supply two type (A or B) motor for choice to meet different working conditions.

Application of refrigerant

Besides R22, RC2 compressor is also suitable for other refrigerant such as R134a, R407C, R404A, R507 etc.
