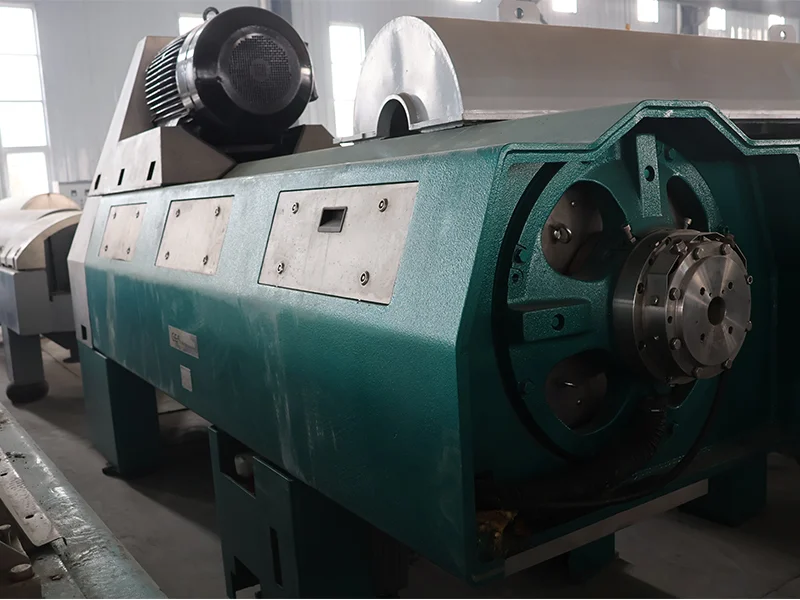

Used GEA CE 536-00-34
Different Parameters, Different Price.
Our staff will give you the most suitable quote.
- Year of manufacture: 2005
- Model: CE 536-00-34
- Feed temperature range: 5 – 80 °C
- Bowl speed: 3500 rpm
Introduction
The GEA CE 536-00-34 horizontal screw separator is a continuous operation horizontal solid-walled centrifuge, primarily designed for the separation of liquid-solid two-phase mixtures. This model of separator boasts efficient separation performance and reliable operational stability, and is widely used in various industrial fields, especially for the processing of starch and plant proteins, as well as for the dewatering requirements in industrial sludge and wastewater treatment.
The core components of this device include a cylindrical bowl and a conical bowl. The cylindrical part is responsible for clarifying the liquid, while the conical part is used for dehydrating the solids. Through the action of centrifugal force, the solids are thrown towards the bowl wall and continuously transported to the solid discharge port by a spiral conveyor.
Specification
Parameter Name | Value & Unit |
Model | CE 536-00-34 |
Year of manufacture | 2005 |
Bowl diameter (Dia.) | 530/260 mm |
Length-diameter ratio (L/D) | 4.0 |
Bowl speed | 3500 rpm |
G-force | 3600g |

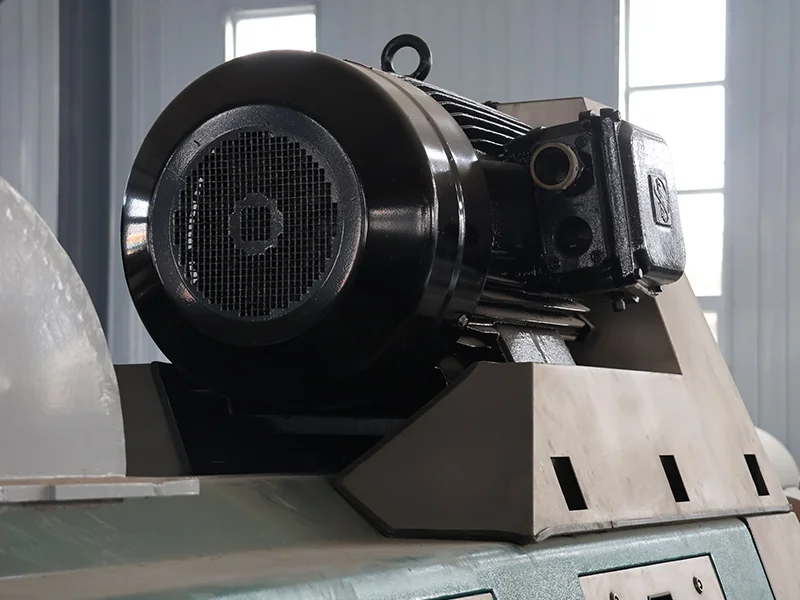

Main motor power | 90 kW |
Conveyor drive power | 11 kW (50 Hz) |
Feed temperature range | 5 – 80 °C |
Net weight | Approx. 5100 kg |
Gross shipping weight | Approx. 6000 kg |
working principle
The working principle of the GEA CE 536-00-34 horizontal screw separator is based on centrifugal sedimentation. The material to be processed enters the high-speed rotating horizontal cylindrical bowl through a fixed feed pipe. Due to the effect of centrifugal force, the denser solid particles quickly settle onto the bowl wall. The spiral conveyor inside the bowl rotates in the same direction as the bowl at a slightly different speed, pushing the settled solid matter along the bowl wall towards the conical end.
The solid substances are discharged through the conical end outlet, while the clarified liquid flows out of the bowl through the adjustable weir plate and enters the equipment casing. The entire separation process takes place along the entire length of the cylindrical bowl, ensuring efficient liquid-solid separation.
Application
The GEA CE 536-00-34 horizontal screw separator is suitable for a variety of industrial separation tasks, including but not limited to:
- Food industry: Extraction and concentration of starch and plant proteins.
- Environmental protection: Dewatering and concentration of industrial sludge and municipal sludge, wastewater treatment.
- Chemical industry: Clarification of various suspensions and separation of solids.
